What is statrapid pile test

StatRapid is a method for Rapid Load Testing: A powerful quasi static test method for determining the static load capacity of piles in compliance with ASTM D7383 and EuroCode 22477. Within the StatRapid test method a drop weight is dropped on a special designed StatRapid cushioning. Due to its special characteristics, the kinetic energy of the drop weight is transferred in a relative long duration push on top of the pile. StatRapid is based on the Rapid Load Testing method, and therefor combines all benefits from Static and Dynamic Testing: A StatRapid Load Test requires limited time, lower costs and yields high accuracy results.

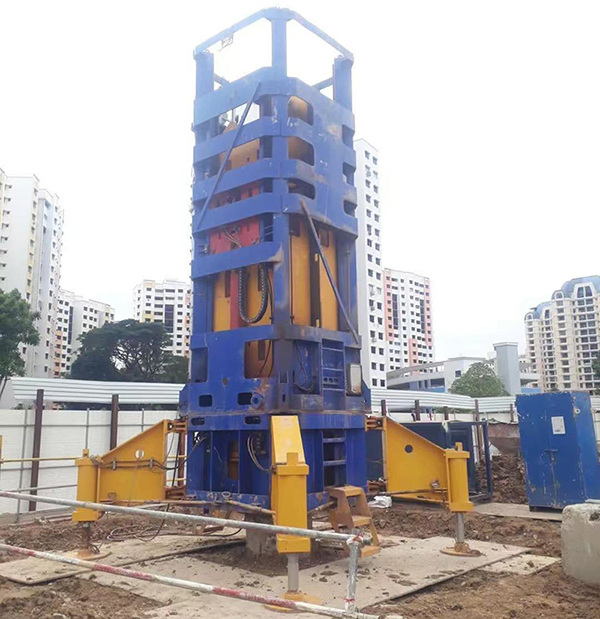

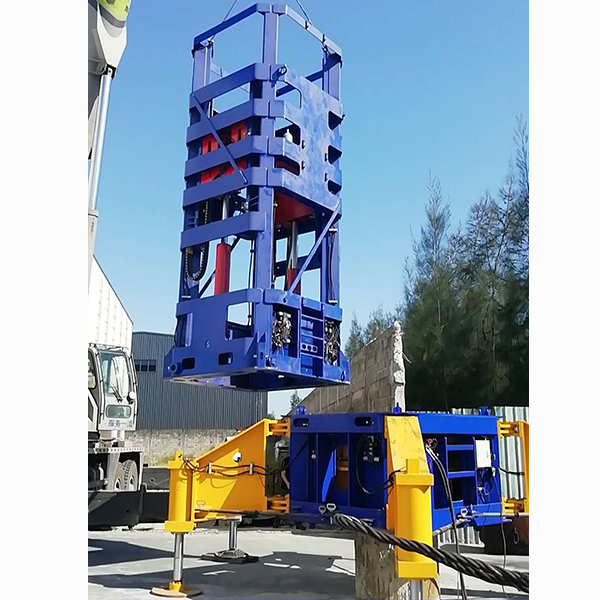

THE STATRAPID TEST DEVICE

The StatRapid device is available with weights of 40 and 300 tonnes and more. Leading to testing load up to 12 and 60 MN and more, depending on the soil and pile conditions. Each device consists of a basic frame including load cells, the special for Rapid Load Testing designed cushioning, which is modular both in number of spring elements as in stiffness of each spring element. The upper frame includes the hydraulics for lifting and catching and the test weight. The test weight is also modular. Weight can be added or removed in order to optimise the setup for each pile, depending on soil conditions and on the required test load. Relationship between drop heigth and test load will be determined prior to the tests, using AllWave-RLT. This program, as part of the AllWave Software Package, simnulates the Rapid Load Tests, incorporating all possible influences from pile, soil and testing setup.

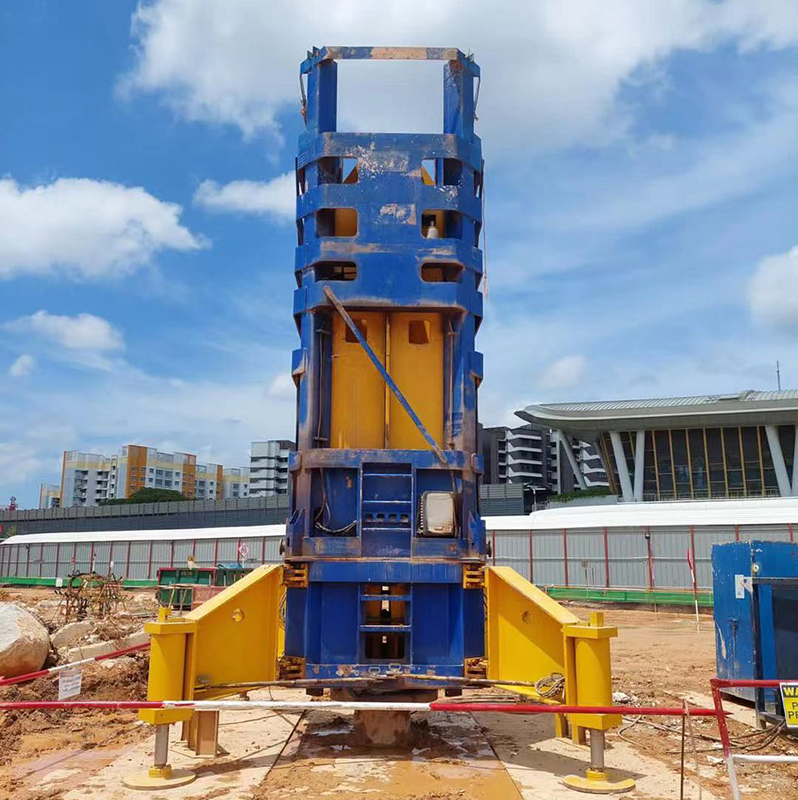

Reliable design of GSR60 model statrapid pile test device

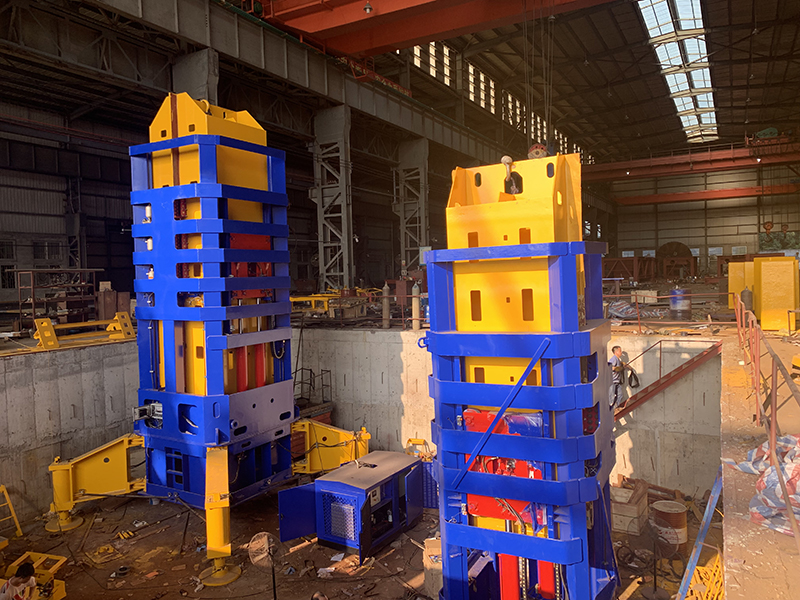

All the modules can be loaded into standard containers.Hoisting and flipping have the corresponding reasonable design, to ensure the rapid assembly and safety of the equipment

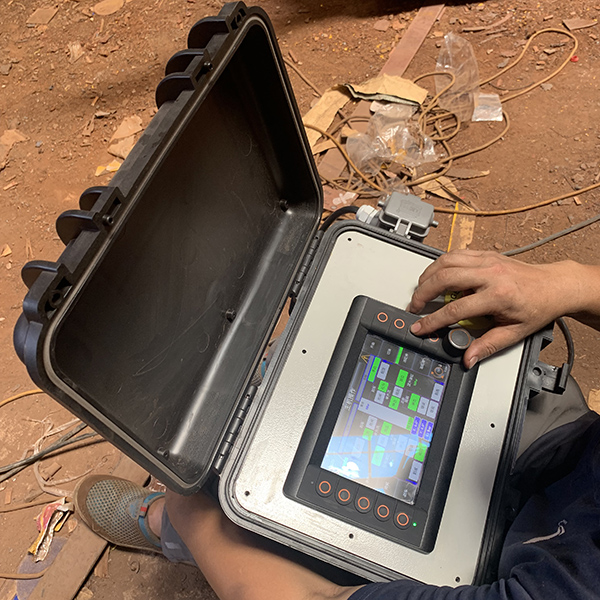

Germany import Electrical control system

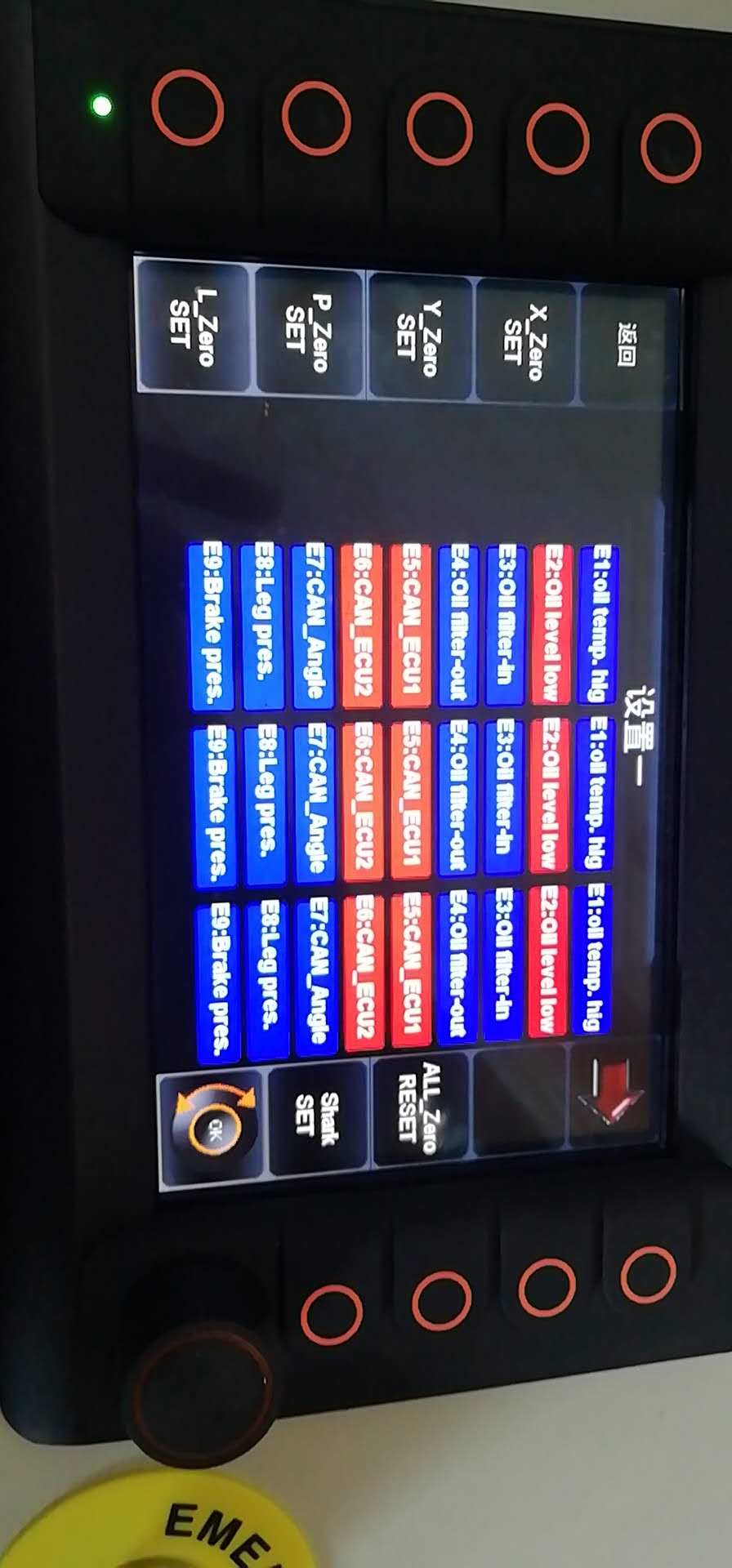

Controller, sensor, control box and other electrical accessories are all use Germany IFM, Sun resistance, corrosion resistance, high seismic strength, especially for outdoor machinery use

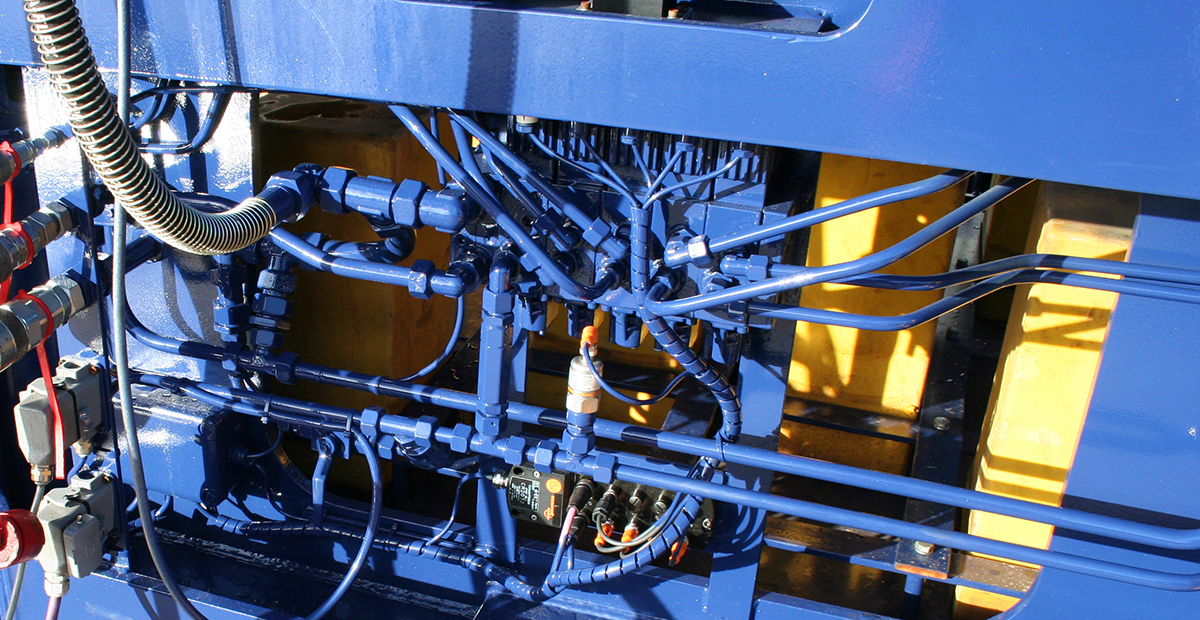

Reliable hydraulic system

Important hydraulic pump and valves are Japan imported.

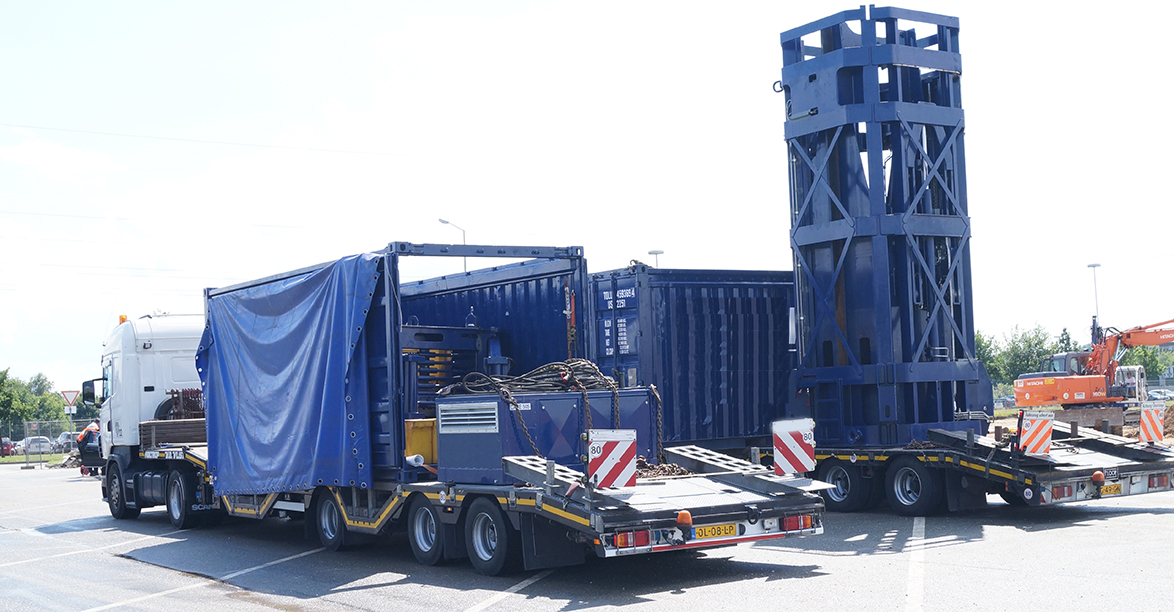

Dimension and weight of every assembly when transpoting and hoisting

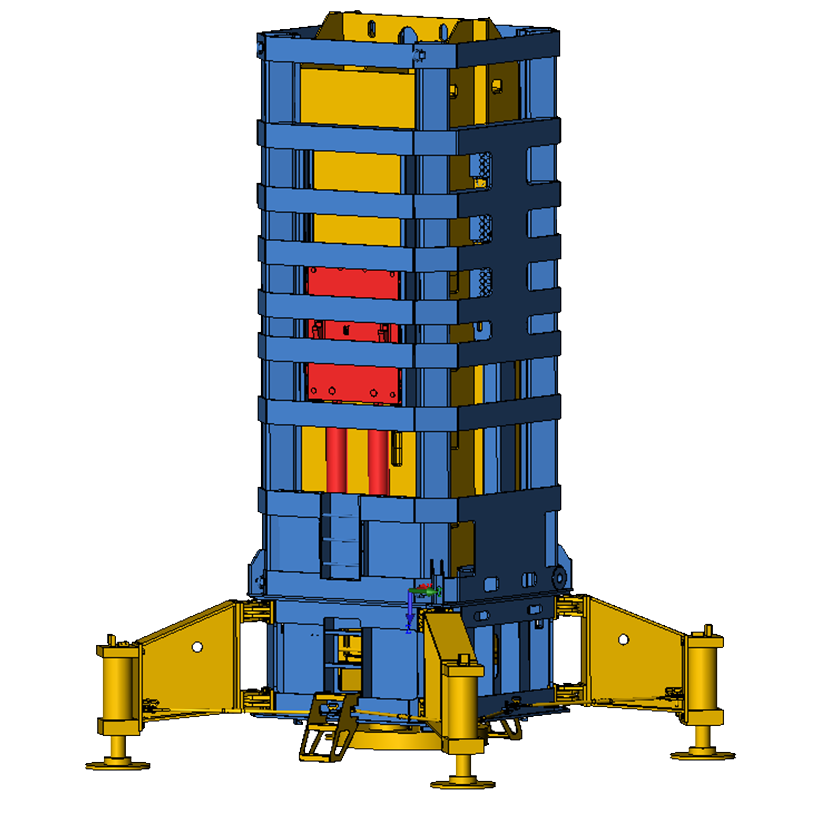

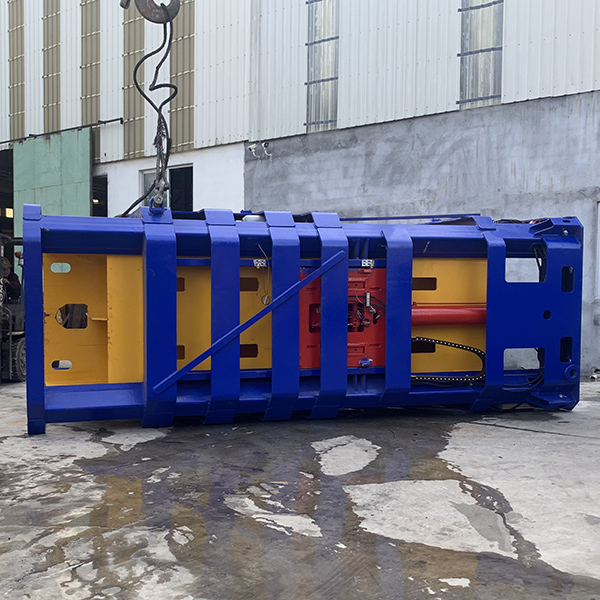

1.pngTOP FRAME ASSEMBLY

2.pngBottom FRAME ASSEMBLY

图片 1.png




●Dimension

2260mm*2140mm*5960mm

●Weight

11.8Tons

图片 2.png




Dimension

5066mm*2300mm*1700mm

Weight

10.8Tons

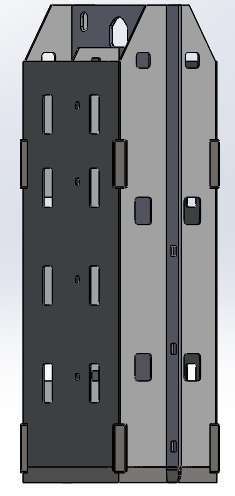

3.pngDROP WEIGHT CONTAINER

4.pngDROP WEIGHT 2.75Ton type

图片 3.png




Dimension

1736mm*1527mm*4885mm

Weight

9.1TonS

图片 4.png

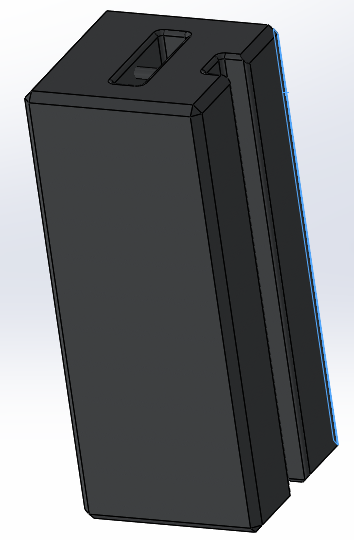

Drop weight

2.75Ton/pcs; total 4 pcs

Dimension

660mm*660mm*900mm


5.pngDROP WEIGHT 5TON TYPE

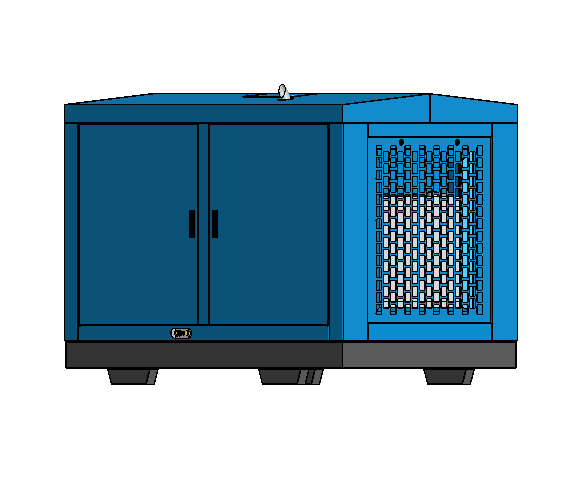

6.pngpOWER PACK

图片 5.png

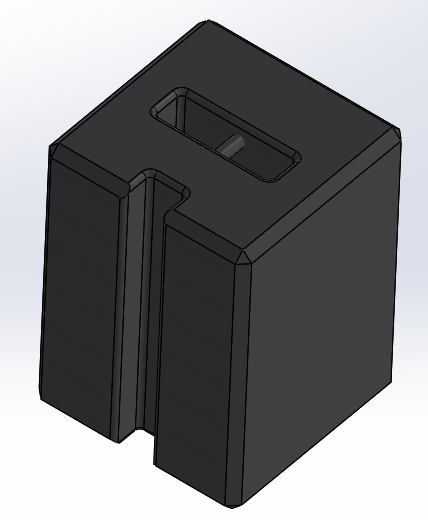

Drop weight

5Ton/pcs; total 8 pcs

Dimension

660mm*660mm*900mm

图片 1(1).png




Dimension

2200*1250*1520mm

Weight

1.3Ton

7.pngoTHER ASSEMBLY


图片 7.png

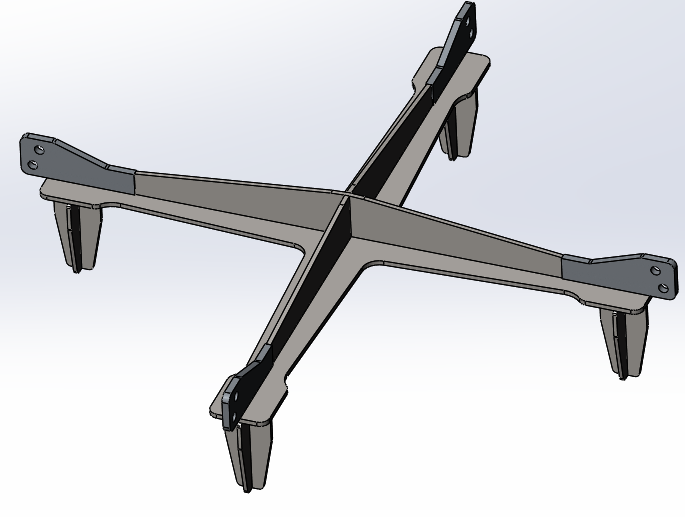

 Lifting fixture

图片 14.png

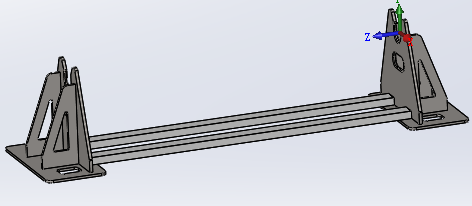

Flip support

frame

图片 6.png

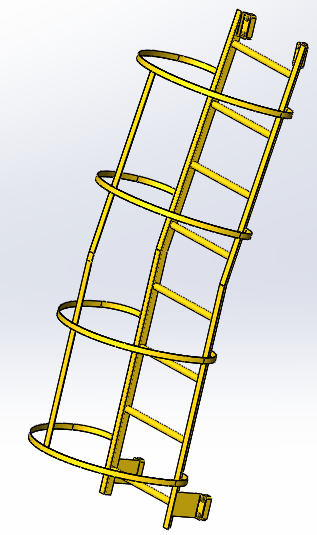

safety ladder




STATRAPID LOAD TESTING

StatRapid is a method for Rapid Load Testing: A powerful quasi static test method for determining the static load capacity of piles in compliance with ASTM D7383 and EuroCode 22477


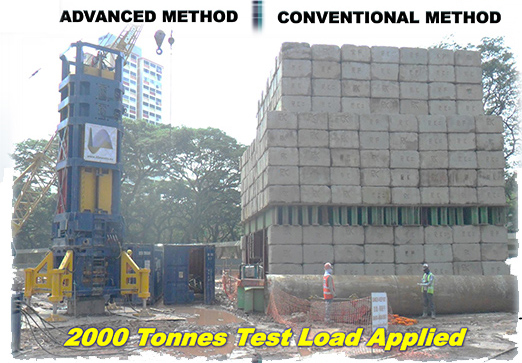

KEY CHARACTERISTICS

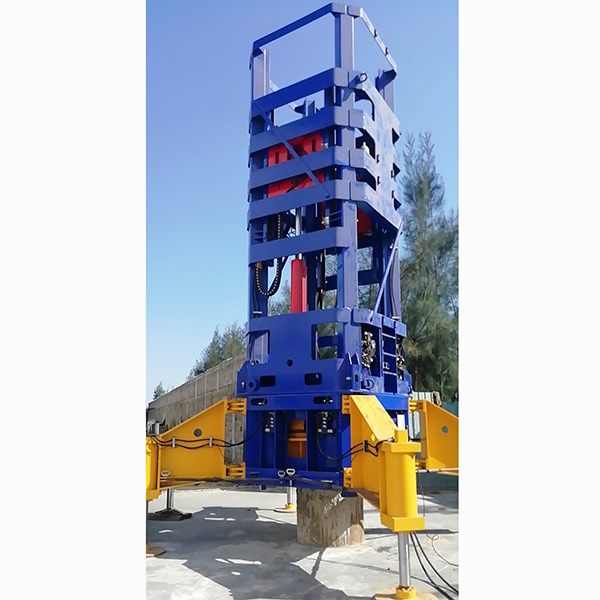

StatRapid device ready in Down Town Utrecht to perform Rapid Load Testing


Rapid Load Testing is a method were a pile is loaded in a short moment, giving a gentle push on the pile top. This method is much faster than static load testing. The duration of the load is much longer than during a Dynamic Load Test or PDA. Due to the long duration of the load, no stress waves phenomena are involved. When the requirements of the quasi static situation are fulfilled, the interpretation of the Rapid Load Test results are straightforward, without stress wave analysis and without Signal Matching. As a result, the results of Rapid Load Tests are more accurate, reliable, and man-independent.

Rapid Load Testing has two major test methods: StatNamic and StatRapid.


STATRAPID

StatRapid is the quasi static, high strain test method for determination of the bearing capacity of foundation piles. Within the StatRapid test method a drop weight is dropped on a special designed StatRapid cushioning. Due to its special characteristics, the kinetic energy of the drop weight is transferred in a relative long duration push on top of the pile. StatRapid is based on the Rapid Load Testing method, and therefor combines all benefits from Static and Dynamic Testing: A StatRapid Load Test requires limited time, lower costs and yields high accuracy results.


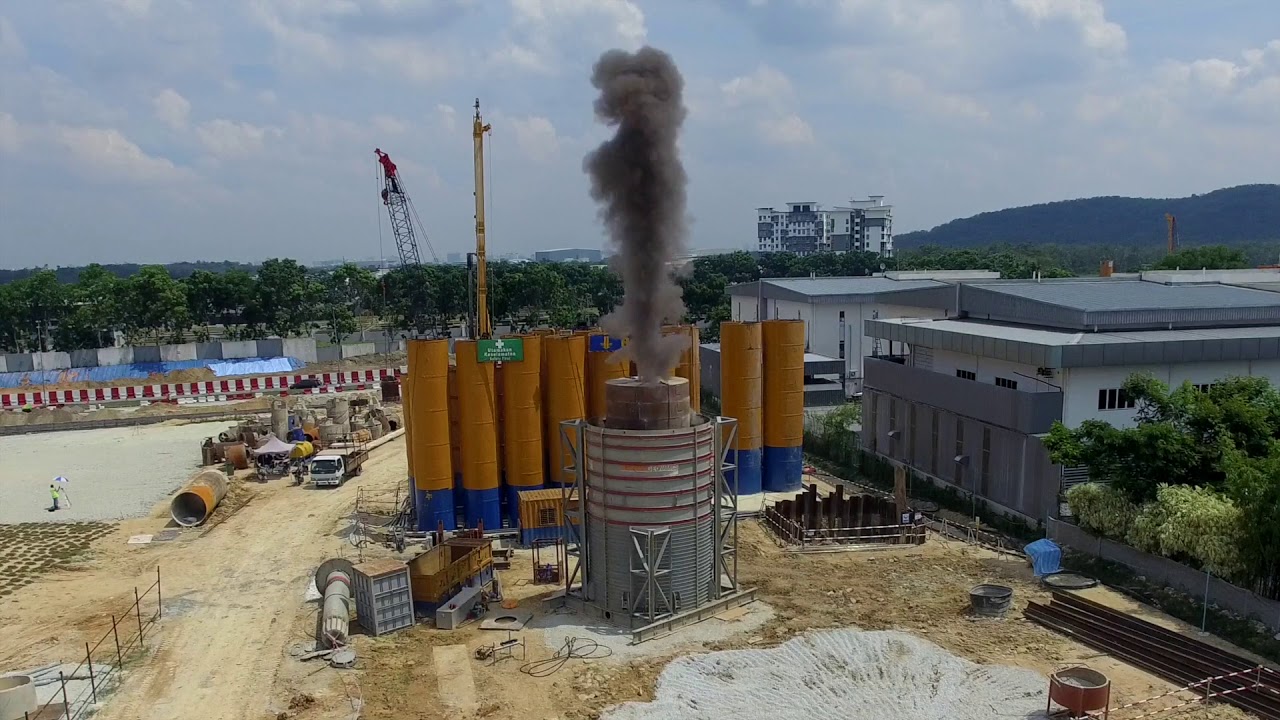

STATNAMIC

StatNamic has been developed in the 80’s of last century, and was the first test method for Rapid Load Testing. The method is based on launching a mass from the pile top. Using the Newton law’s, for Force = Mass * Acceleration and Action=Reaction, the StatNamic test device gave a gentle, short push on top of the pile. Long enough to avoid stress wave phenomena.

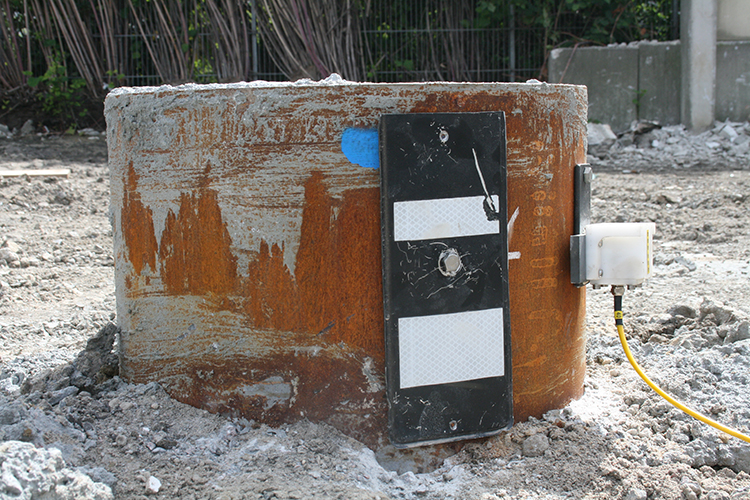

MONITORING SENSORS

The monitoring system of the any Rapid Load Testing, i.e. StatRapid or StatNamic, consists of the PDR data acquisition unit and various sensors recording the following quantities at the pile top:

Direct measurements of loads and settlements gives direct measured load-settlement diagrams. By analysing the results with the Unloading Point Method, according to ASTM and EuroCodes (and other codes), the static load diagram is obtained.



SPECIFICATIONS AND CODES

The tests of the Rapid Load Testing are in compliance with a.o. ASTM D7383, and EuroCode EN ISO-22477-10, as well as other national codes (i.e. Dutch CUR-230). According to these codes:

ADVANTAGES
